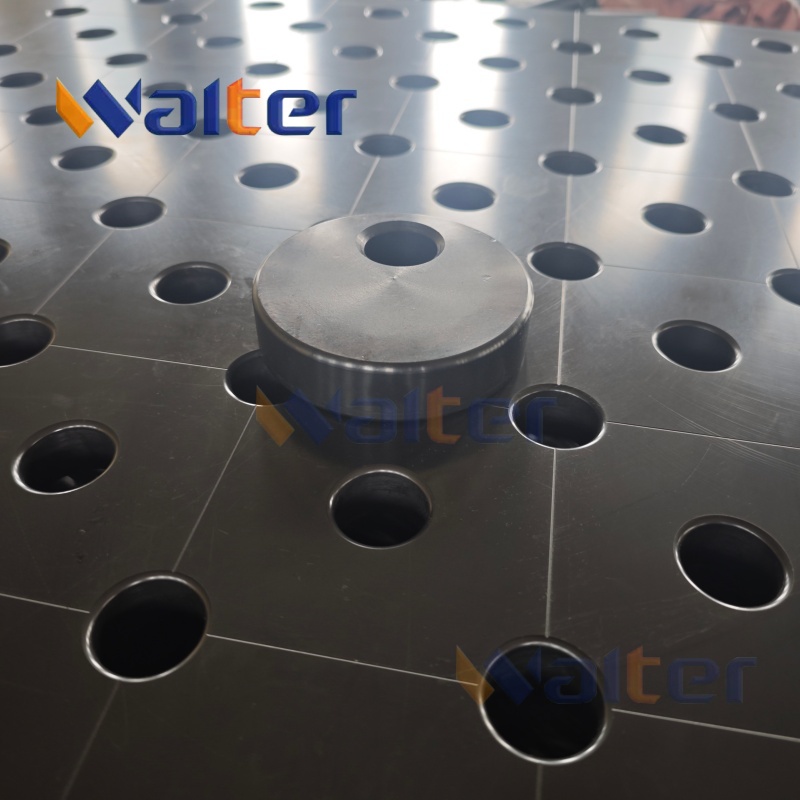

The Walter 3D Welding Table system is further enhanced by the SC28002 – a 500x200x100mm nitrided steel square block designed for large-scale welding component connections. This fixture supports framework construction and integrates perfectly with Welder 3D Durable Nitriding welding table System, Professional Steel Plasma nitriding welding platform, and modular welding table setups.

• Product Code: SC28002

• Dimensions: 500x200x100mm

• Material: Hardened nitrided steel

• Application: Frame alignment and modular extensions

• Mounting: φ28mm grid system

• Machining Precision: ±0.02mm

• Surface Hardness: Up to 60 HRC

• Coating: Anti-rust nitrided treatment

• Fixture Type: precision welded 3d fixture table q235 steel

• Compatibility: heavy duty cast iron fixture table 550HV

• In Stock: Steel S355 Durable Nitriding welding table System

• Accessory Group: Nitrided Surface 3D Modular Welding Table series

Solving Elevator Guide Rail Welding Irregularities: How Modular Welding Platforms Deliver Perfect Alignment for Professional and New Welders

Elevator guide rail welding demands exceptional flatness and smoothness at every joint—any unevenness or step at the splice will directly impact elevator ride quality and long-term safety. For both experienced professionals and new welders, achieving perfectly flush joints is often a challenge, especially with long, heavy rails and tight alignment tolerances. Fortunately, the emergence of advanced modular welding tables—such as the Walter 3D Welding Table—has revolutionized the process. This article explores how these platforms ensure guide rails are welded straight, smooth, and to precise specifications, with actionable details for setup, clamping, error prevention, and real-life application.

1. Why Flatness Matters in Elevator Guide Rail Welding

Guide rails serve as the backbone for elevator travel. Even a slight bump or misalignment at a weld can cause noise, vibration, premature wear, or even a system shutdown. Traditional manual welding, often done on makeshift benches or floors, introduces significant risk of human error.
A 3D welding table provides the precision and rigidity necessary for flat, repeatable welds—allowing both seasoned and beginner welders to achieve professional results.

2. Key Advantages of Using a Modular Welding Table

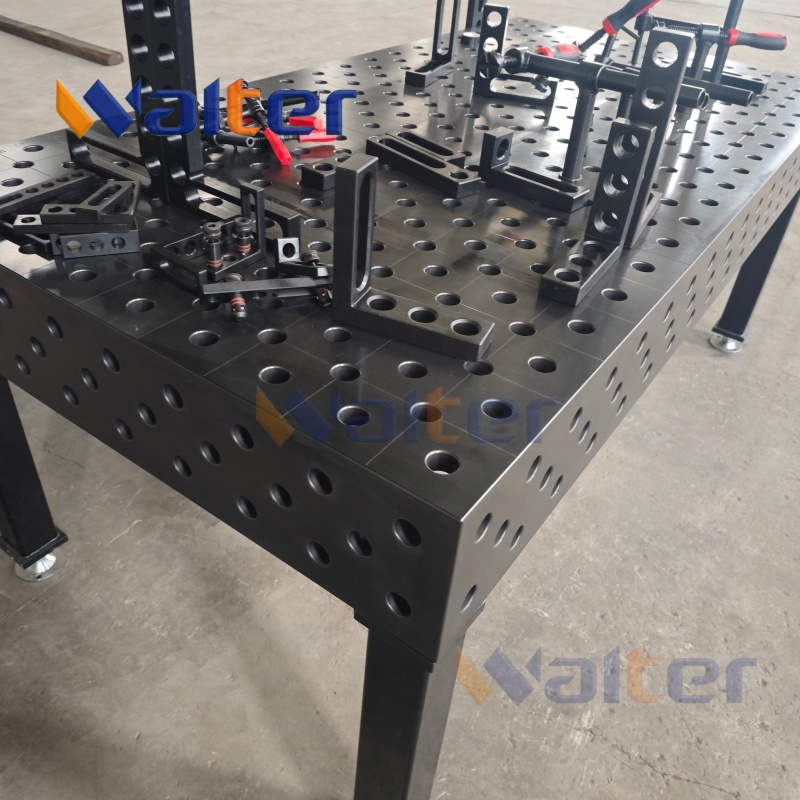

• Stable Reference Plane: The Walter 3D Welding Table features a machined, nitrided surface that remains perfectly flat even under heavy loads, preventing guide rail sagging during welding.

• Flexible Clamping System: With a comprehensive set of adjustable stops, angles, and clamps, the Welder 3D Durable Nitriding welding table System allows precise fixture of each rail segment.

• Professional-Level Accuracy: The Professional Steel Plasma nitriding welding platform supports fine alignment, while accessories enable quick adjustment for different rail sizes or welding directions.

3. Step-by-Step Welding Workflow for Guide Rails

• A. Surface Preparation: Clean all rail ends and the table surface, removing rust, oil, and debris to ensure tight contact.

• B. Initial Setup and Alignment: Place the first rail section on the modular welding table. Use built-in guides and a laser or dial gauge to check for straightness. Position the joining rail section, bringing the ends together as tightly as possible.

• C. Clamping and Fixturing: Use flexible clamps to fix both rail sections. For long or heavy rails, utilize multiple support points and adjustable jigs to prevent droop or twist.

• D. Tack Welding: Start with tack welds at each corner and midpoint of the joint. After tacking, re-check alignment using the table’s measurement guides.

• E. Full Welding Pass: Proceed with main welds along the joint, alternating sides to balance heat and minimize distortion. After each pass, allow the joint to cool, then measure flatness and correct as needed.

Case Example: A leading elevator installation company adopted the Steel S355 Durable Nitriding welding table System in stock for all in-shop guide rail splicing. Over 120 rails were welded with less than 0.1 mm deviation at joints—exceeding both company and international ride quality standards.

4. Common Errors and How to Avoid Them

• Skipping Clamp Checks: Always ensure clamps remain tight throughout the process. Even slight movement can create a step in the weld.

• Improper Heat Management: Weld too quickly or with uneven heat, and the rail may warp. Use the table’s heat-resistant, Nitrided Surface 3D Modular Welding Table to prevent damage.

• Inconsistent Alignment: Failing to check with the guides after every step is the top source of errors. Make it routine to verify flatness before and after each weld.

5. Practical Tips for New Welders

• The Walter system’s modular guides make training simple:

• Use the Precision Welded 3D Fixture Table Q235 Steel for lighter rails and fast practice setups.

• For particularly heavy rails or high-volume splicing, a Heavy Duty Cast Iron Fixture Table 550HV offers maximum support and vibration damping.

• Follow a repeatable process: Clean, align, clamp, tack, check, weld, verify.

Real-World Training:
New technicians at a major OEM reached professional-level weld flatness after just two days of hands-on work using the modular system and detailed process checklists.

6. Beyond the Basics: Multiple Solutions for All Scenarios

Whether welding short repair splices or assembling dozens of new rails for a high-rise, modular tables adapt:

• Multi-joint welding with rapid jig repositioning

• Angle brackets for curved or custom rail sections

• Quick-change clamps for fast cycle times

SEO Keywords: 3D welding table, Walter 3D Welding Table, Welder 3D Durable Nitriding welding table System, Professional Steel Plasma nitriding welding platform, modular welding table, Steel S355 Durable Nitriding welding table System in stock, Nitrided Surface 3D Modular Welding Table, precision welded 3d fixture table q235 steel, heavy duty cast iron fixture table 550HV
